🔧 Technical Specifications

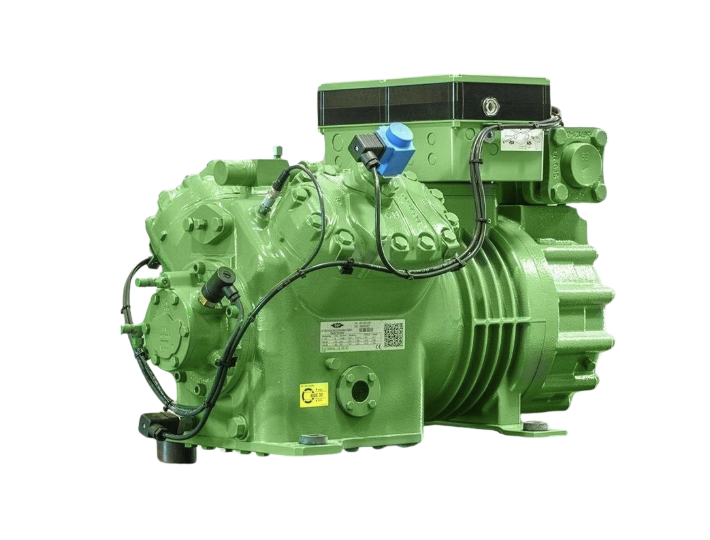

- Model: 4JE-15Y-40P
- Cooling Capacity (R404A @ -10°C / 45°C): 33.1 kW
- Power Input: 14.11 kW
- COP (Efficiency): 2.35
- Displacement (50Hz): 63.5 m³/h
- Displacement (60Hz): 76.64 m³/h
- Cylinders / Bore / Stroke: 4 × 65 mm × 55 mm
- Weight: 192 kg
- Max Pressure (LP / HP): 19 / 32 bar

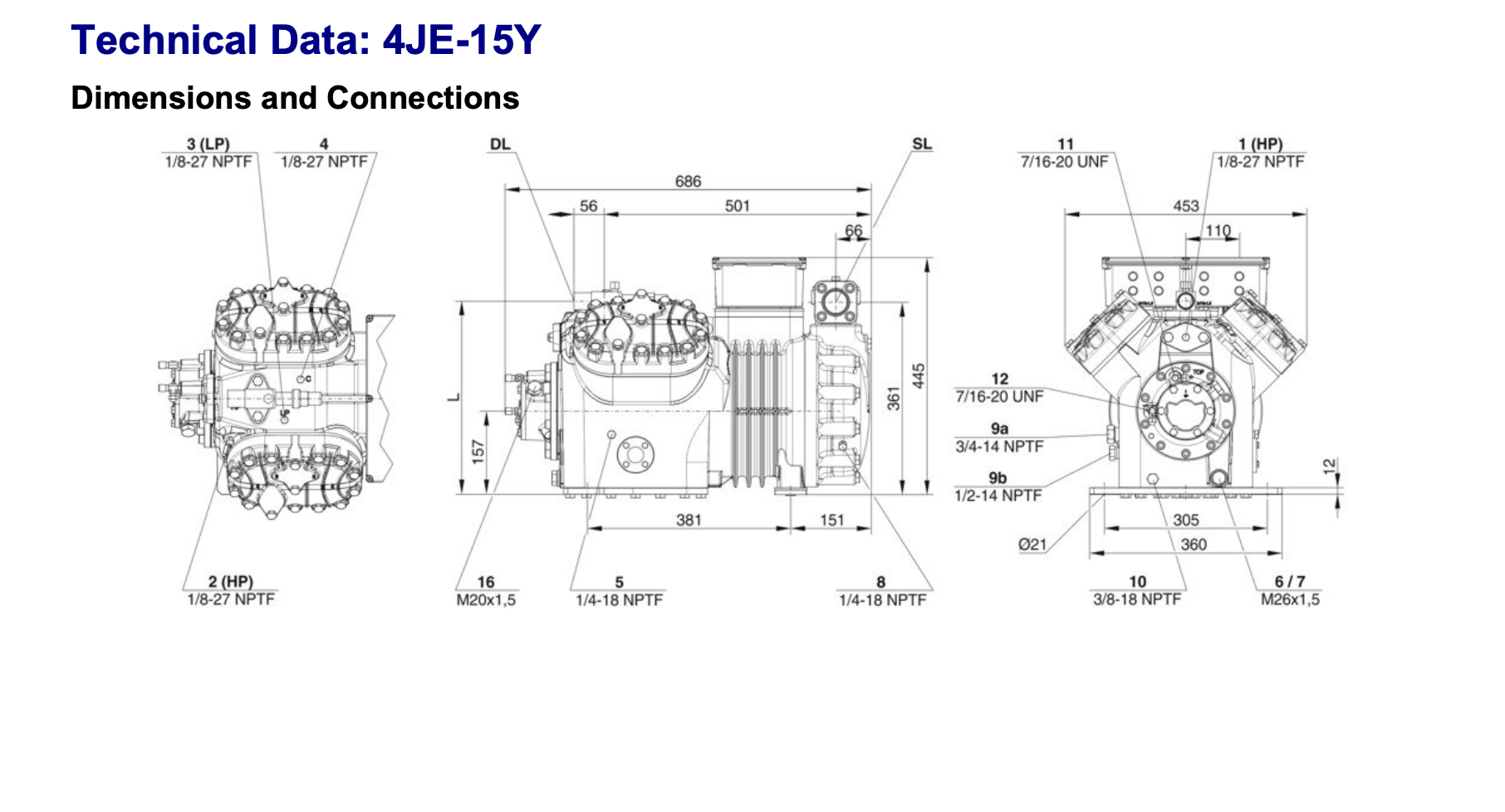

- Suction Connection: 42 mm – 1 5/8”
- Discharge Connection: 28 mm – 1 1/8”
- Max Power Input: 19.0 kW
- Max Operating Current: 30.8 A
- Starting Current (Rotor Locked): 97.0 A (Y) / 158.0 A (YY)
- Discharge Temperature: 90.2°C
- Sound Pressure Level: 69.5 dB(A) @ -10°C / 45°C
🛢 Oil & Refrigerant Compatibility
- Standard Oil Charge: 4.00 dm³ – BSE32
- Compatible Refrigerants:
- R404A, R507A, R407A/F → BSE32
- R134a >70°C → BSE55
- R22 → B5.2
- R1234yf → BSE32 / BSE55
- R1234ze → BSE55 / BSE85K
- R454C, R455A → BSE32
- R515B → BSE55 / BSE85K
💡 Why Choose the 4JE-15Y
✔️ Excellent performance for commercial cold room & freezer applications
✔️ Engineered for durability with IP54 enclosure (IP66 optional)
✔️ Strong motor (19 kW max input) for tough operating conditions
✔️ Optional features: oil heater, discharge temp sensor, start unloading
✔️ Compatible with Bitzer IQ Module (CM-RC-02) for Bluetooth/Modbus control
📦 Compatible Accessories
- Volume: 105 L
- Max R404A charge: 100.9 kg
- Features: Modbus, Bluetooth, real-time data logging
- Enclosure: IP66
🚚 Shipping & Availability
- ✅ Suitable for 380–420V / 50Hz
- ⚙️ Custom voltages (e.g., 60Hz) available within 3–4 weeks
- 🌍 Export packaging and global delivery available
