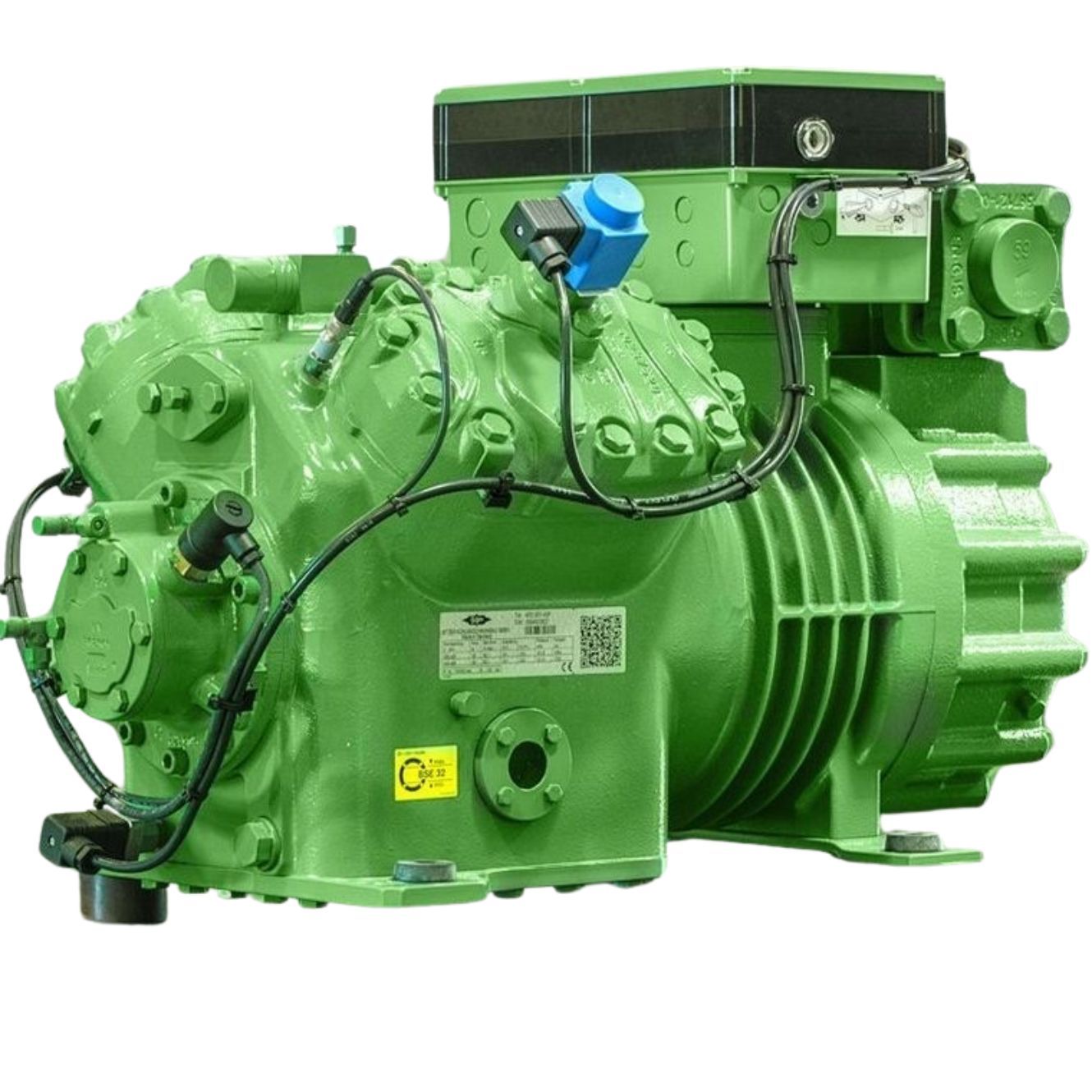

Bitzer 4GE-30Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Specifications

• Model: 4GE-30Y-40P
• Cooling Capacity (R404A @ -10°C / 45°C): 43.8 kW
• Power Input: 18.71 kW
• COP (Efficiency): 2.34
• Displacement (50Hz): 84.5 m³/h
• Displacement (60Hz): 101.98 m³/h
• Cylinders / Bore / Stroke: 4 × 75 mm × 55 mm
• Weight: 209 kg
• Max Pressure (LP / HP): 19 / 32 bar
• Suction Connection: 54 mm – 2 1/8”
• Discharge Connection: 28 mm – 1 1/8”
• Max Power Input: 28.0 kW
• Max Operating Current: 51.2 A
• Starting Current (Rotor Locked): 141.0 A (Y) / 233.0 A (YY)
• Discharge Temperature: 90.3°C
• Sound Pressure Level: 73 dB(A) @ -10°C / 45°C

🛢 Oil & Refrigerant Compatibility

• Standard Oil Charge: 4.5 dm³ – BSE32
• Compatible Refrigerants:

• R404A, R507A, R407A/F → BSE32
• R134a >70°C → BSE55
• R22 → B5.2
• R1234yf → BSE32 / BSE55
• R1234ze → BSE55 / BSE85K
• R454C, R455A → BSE32
• R515B → BSE55 / BSE85K

------------------------------------------------------------------------------------------
💡 Why Choose the 4GE-30Y

✔️ High cooling capacity for industrial cold rooms and freezers

✔️ Durable design with IP54 motor enclosure (IP66 optional)

✔️ Optional oil heater, start unloading, and capacity control features

✔️ Compatible with Bitzer IQ Module CM-RC-02 for smart control

✔️ Factory-installed vibration dampers and shut-off valves

📦 Compatible Accessories

• Receiver: Bitzer F1052T

• Volume: 105.0 L
• Max R404A charge: 100.9 kg

• IQ Module: CM-RC-02

• Features: Bluetooth, Modbus, real-time logging
• Enclosure Class: IP66
• Power Supply: 115–230V

------------------------------------------------------------------------------------------
🚚 Shipping & Availability

• ✅ Ready for 380–420V / 50Hz systems
• ⚙️ Custom configurations (e.g., 60Hz) available within 3–4 weeks
• 🌍 Export-grade packaging and international delivery available
