π§ Technical Data Summary
Β
- Displacement (1450rpm, 50Hz): 26.84 mΒ³/h
- Displacement (1750rpm, 60Hz): 32.39 mΒ³/h
- Number of Cylinders Γ Bore Γ Stroke: 4 Γ 50 mm Γ 39.3 mm
- Weight: 100 kg
- Maximum Pressure (Low Pressure/High Pressure): 19 bar / 32 bar
- Suction Line Connection: 28 mm β 1 1/8β
- Discharge Line Connection: 22 mm β 7/8β
- Max. Operating Current: 16.5 A
- Starting Current (Rotor Locked): 82.4 A
- Max. Power Input: 8.9 kW
- Horsepower: 7 Β HP Β
- Oil Type:
- R134a/R407C/R404A/R507A/R407A/R407F β BSE32 (Standard)
- R134a (condensing temp >70Β°C) β BSE55 (Option)
- R22 (R12/R502) β B5.2 (Option)
- R1234yf β BSE32 (Standard) / BSE55 (Option if >70Β°C)
- R1234ze β BSE55 (Standard) / BSE85K (Option)
- R454C/R455A β BSE32 (Standard)
- Application: Medium- and low-temperature cold rooms, commercial refrigeration cabinets, and air-cooled condensing units.
π΅ Why Choose This Compressor:
Β
- Trusted Bitzer performance with a long operational life
- High cooling efficiency for reduced energy costs
- Strong compact design for flexible installation
- Low vibration and low noise output
- Compatible with multiple environmentally friendly refrigerants
- Ideal for large-scale supermarkets, cold storage warehouses, and industrial freezing applications
π¦ Need a Condensing Unit or Other Bitzer Models?
Β
We offer a complete range of Bitzer compressors, condensing units, and original accessories at competitive prices with worldwide shipping.
π§ Email us | π Call or WhatsApp us
Contact us β weβre ready to assist your business!
ππ Shipping:
Β
We ship worldwide!
- Standard models (380V / 50Hz) are available for fast dispatch.
- For other voltages (such as 60Hz or custom configurations), production requires an additional 3β4 weeks.
Β
π§ Please reach out to confirm your shipping schedule!
π For More Technical Data:
Β

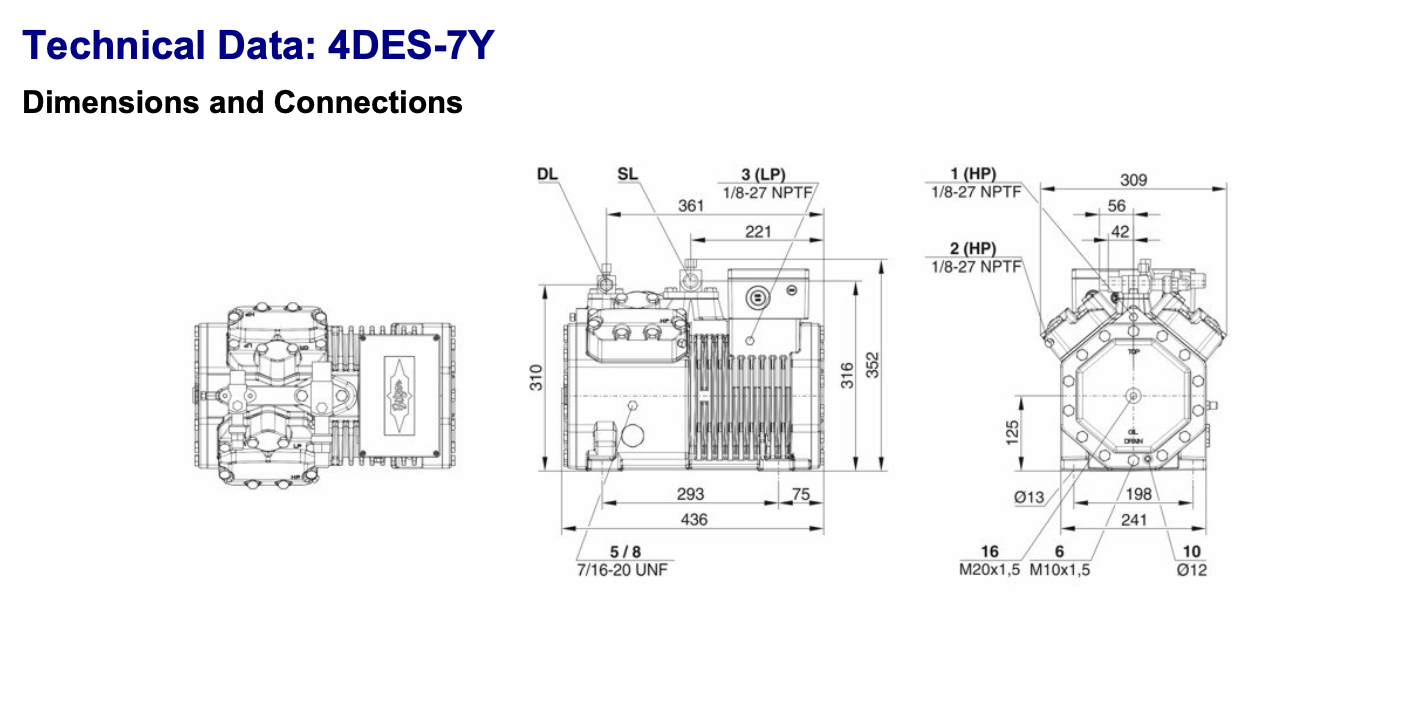

For complete π§ technical specifications (cooling capacity tables, mass flow, electrical data, and dimensions),
please download the full datasheet provided above.
