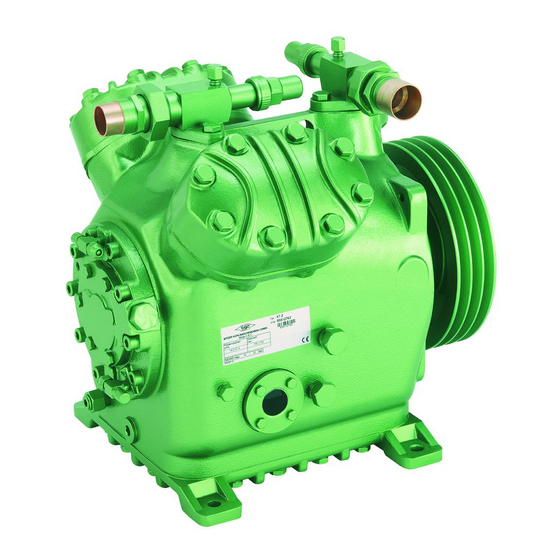

Bitzer 2N.2Y-K Open-Type Reciprocating Compressor

🔧 Technical Specifications:

• Model: 2N.2Y-K

• Refrigerant: R404A (also compatible with R134a, R507A, R407A/F, R407C)

• Evaporating Temp.: -10°C

• Condensing Temp.: 45°C

• Displacement: 28.0 m³/h (50Hz), 33.84 m³/h (60Hz)

• Cooling Capacity: 14.80 kW (EN12900: 15.04 kW)

• Power Input: 5.99 kW

• COP: 2.47

• Cylinder Configuration: 2 cylinders (60 mm bore × 57 mm stroke)

• Weight: 52 kg

• Max. Pressure: 19 bar (LP) / 25 bar (HP)

• Suction Line: 28 mm – 1 1/8”

• Discharge Line: 22 mm – 7/8”

• Oil Charge: 1.75 L

✅ Why Choose the Bitzer 2N.2Y-K?

• Efficient and reliable cooling for industrial and commercial cold storage

• Compact open-type design for easy maintenance

• Compatible with various refrigerants including R404A, R507A, R407A, and more

• Designed for continuous, high-load operation

• Optional accessories: water-cooled heads, oil heater, and advanced monitoring

📦 Shipping & Availability:

✅ Standard 380–420V / 50Hz models available

⚙️ 60Hz or custom voltage configurations built-to-order (lead time 3–4 weeks)

📦 Export-grade packaging for safe, global delivery

📥 Request More Information:

For complete performance data, connection drawings, or to discuss your project, please contact us!
