🔧 Technical Data Summary
- Displacement (1450rpm, 50Hz): 6.51 m³/h
- Displacement (1750rpm, 60Hz): 7.86 m³/h
- Number of Cylinders × Bore × Stroke: 2 × 38 mm × 33 mm
- Weight: 47 kg
- Maximum Pressure (Low Pressure/High Pressure): 19 bar / 32 bar
- Connection - Suction Line: 16 mm – 5/8”
- Connection - Discharge Line: 12 mm – 1/2”
- Max. Operating Current: 3.8 A
- Starting Current (Rotor Locked): 16.7 A
- Max. Power Input: 2.0 kW
- Horsepower: 1 HP (Approximate)
- Oil Type:
- R134a/R407C/R404A/R507A/R407A/R407F → BSE32 (Standard)
- R134a (condensing temp >70°C) → BSE55 (Option)
- R22 (R12/R502) → B5.2 (Option)
- R1234yf → BSE32 (Standard) / BSE55 (Option if >70°C)
- R1234ze → BSE55 (Standard) / BSE85K (Option)
- R454C/R455A → BSE32 (Standard)
- R515B → BSE55 (Standard) / BSE85K (Option)
- Application: Medium- and low-temperature cold rooms, refrigeration cabinets, and air-cooled condensing units
🔵 Why Choose This Compressor:
- Proven Bitzer reliability and durability
- Compact design ideal for limited-space installations
- Low noise and vibration
- Easy to service with accessible components
- Compatible with eco-friendly refrigerants
- Ideal for supermarkets, restaurants, and commercial refrigeration setups
📦 Need a Condensing Unit or Other Bitzer Models?
We offer a full range of compressors and parts with competitive pricing and international shipping options.
📧 Email us | 📞 Call or WhatsApp us
Please contact us if you have any questions — we’re ready to help!
🚚 Shipping:
We ship worldwide!
- Standard models: 380V / 50Hz (ready for immediate shipping).
- For other voltages (such as 60Hz or custom requests), please allow 3 extra weeks for production.

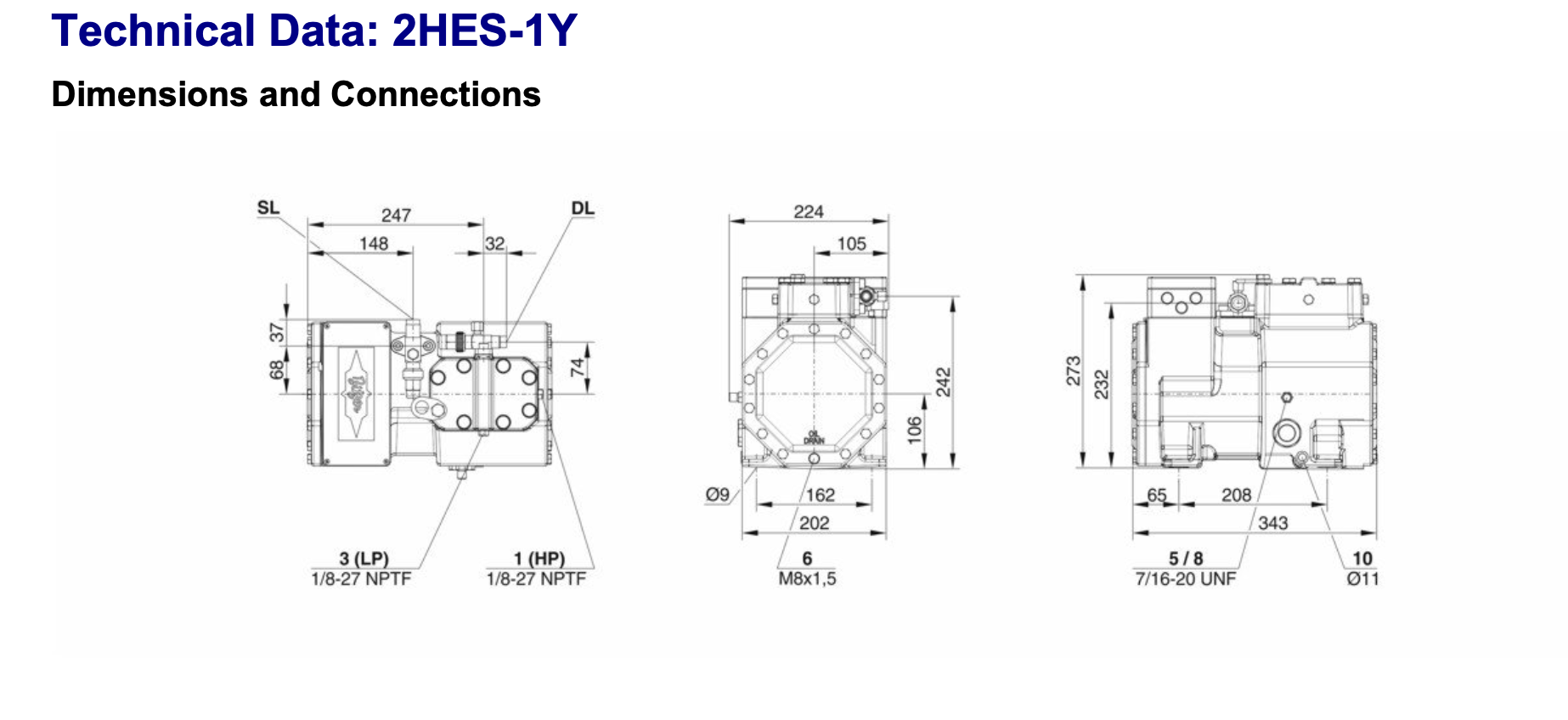

📑 For More Technical Data:
If you want to check even more detailed 🔧 technical information,
please download the full datasheet available above.
