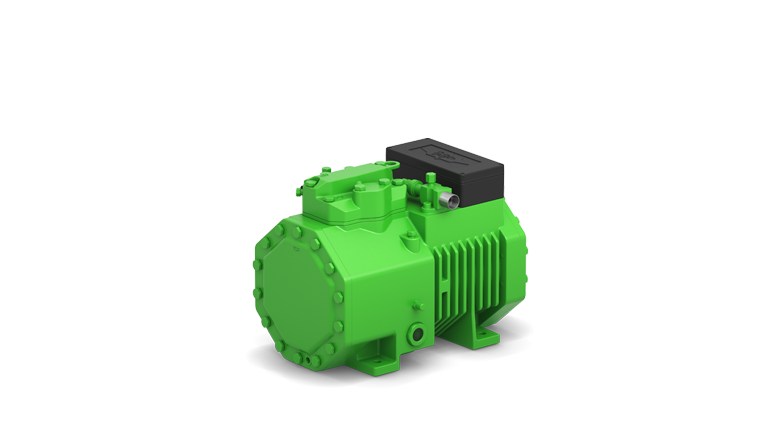

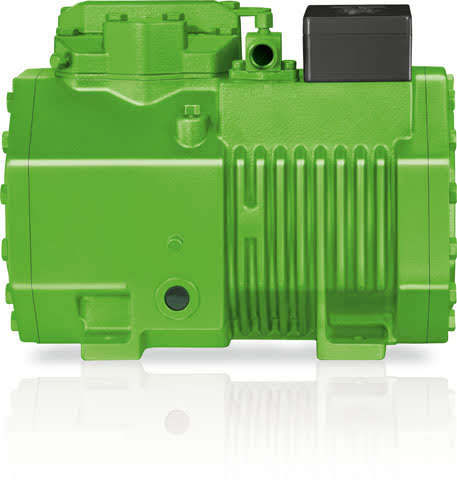

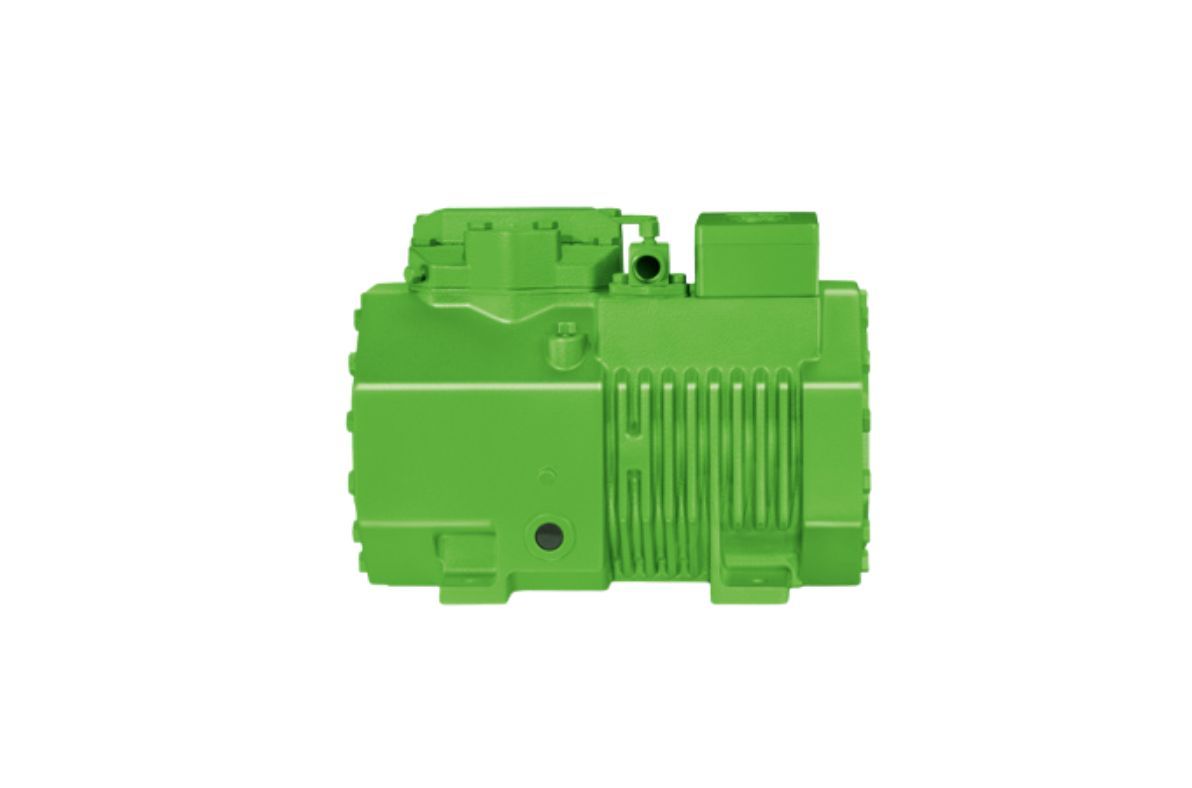

Bitzer 2FES-3Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Data Summary

• Displacement (1450rpm, 50Hz): 9.54 m³/h
• Displacement (1750rpm, 60Hz): 11.51 m³/h
• Number of Cylinders × Bore × Stroke: 2 × 46 mm × 33 mm
• Weight: 50 kg
• Maximum Pressure (Low Pressure/High Pressure): 19 bar / 32 bar
• Connection - Suction Line: 16 mm – 5/8”
• Connection - Discharge Line: 12 mm – 1/2”
• Max. Operating Current: 6.1 A
• Starting Current (Rotor Locked): 25.5 A
• Max. Power Input: 3.4 kW
• Horsepower: 2
• ---------------------------------------------------------
• Oil Type:
• R134a/R407C/R404A/R507A/R407A/R407F → BSE32 (Standard)
• R134a (condensing temp >70°C) → BSE55 (Option)
• R22 (R12/R502) → B5.2 (Option)
• R1234yf → BSE32 (Standard) / BSE55 (Option if >70°C)
• R1234ze → BSE55 (Standard) / BSE85K (Option)
• R454C/R455A → BSE32 (Standard)
• Application: Medium- and low-temperature cold rooms, refrigeration cabinets, and air-cooled condensing units

• ---------------------------------------------------------

🔵 Why Choose This Compressor:

• Proven Bitzer reliability and durability
• Compact design ideal for limited-space installations
• Low noise and vibration
• Easy to service with accessible components
• Compatible with eco-friendly refrigerants
• Ideal for supermarkets, restaurants, and commercial refrigeration setups

• ---------------------------------------------------------

📦 Need a Condensing Unit or Other Bitzer Models?

We offer a full range of compressors and parts with competitive pricing and international shipping options.

📧 Email us | 📞 Call or WhatsApp us

Please contact us if you have any questions — we’re ready to help!

• ---------------------------------------------------------

🚚🌍 Shipping:

We ship worldwide!

• Standard models: 380V / 50Hz (ready for immediate shipping).
• For other voltages (such as 60Hz or custom requests), please allow 3–4 extra weeks for production.

📧 Contact us if you would like to know more information!

• ---------------------------------------------------------

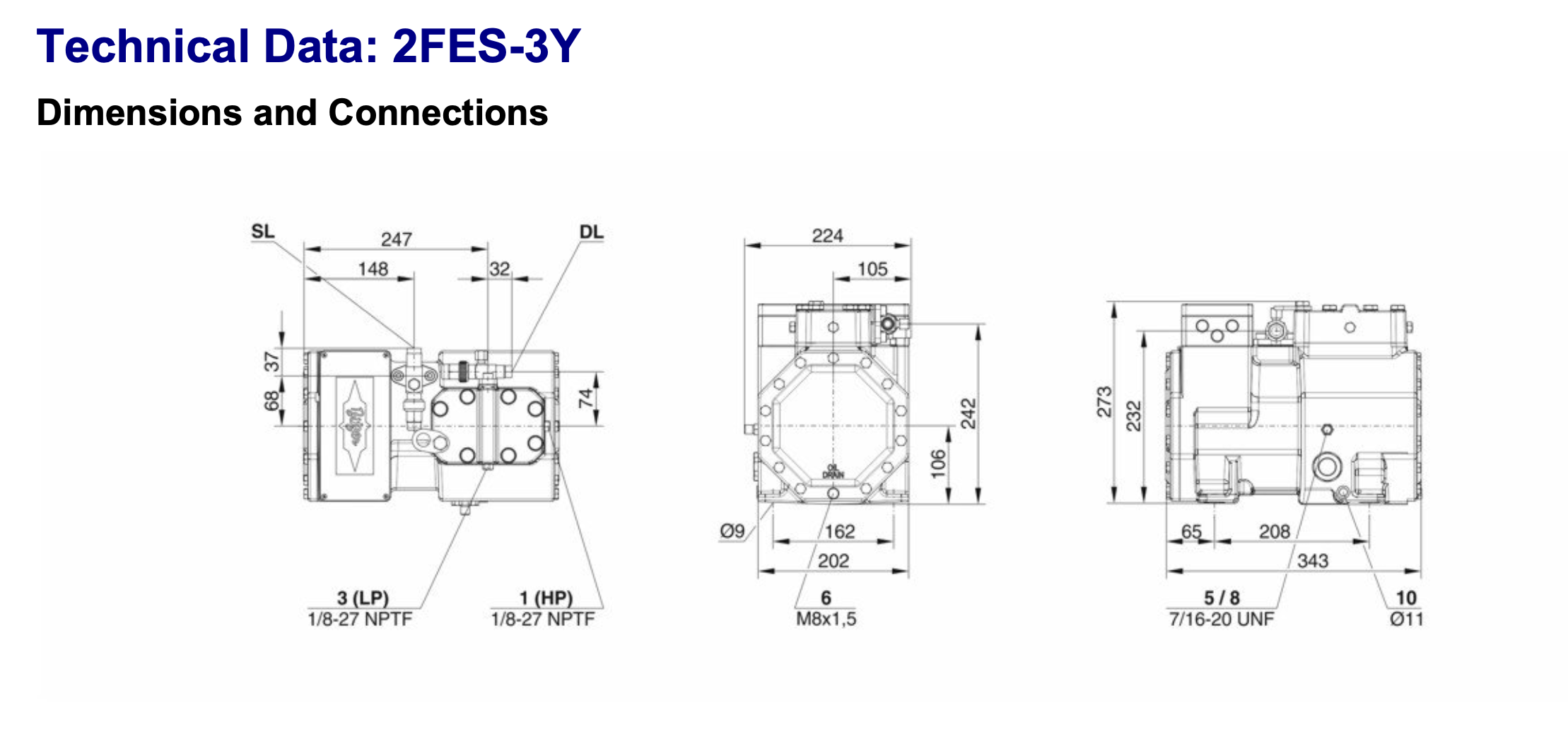

📑 For More Technical Data:

If you want to check even more detailed 🔧 technical information,

please download the full datasheet available above.
