🔧 Technical Data Summary
- Displacement (1450rpm, 50Hz): 13.42 m³/h
- Displacement (1750rpm, 60Hz): 16.20 m³/h
- Number of Cylinders × Bore × Stroke: 2 × 50 mm × 39.3 mm
- Weight: 77 kg
- Maximum Pressure (Low Pressure/High Pressure): 19 bar / 32 bar

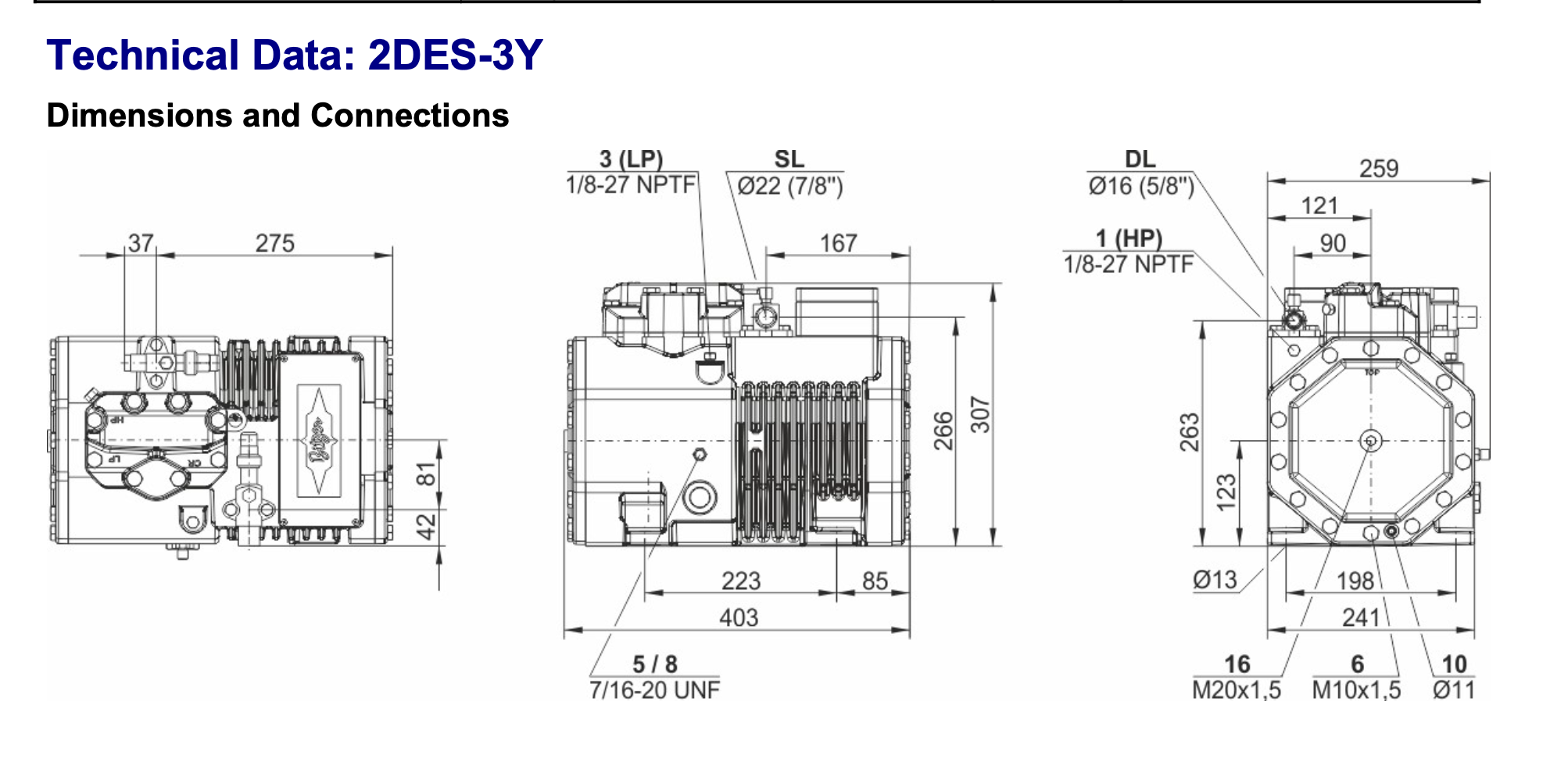

- Connection - Suction Line: 22 mm – 7/8”
- Connection - Discharge Line: 16 mm – 5/8”
- Max. Operating Current: 8.6 A
- Starting Current (Rotor Locked): 37.0 A
- Max. Power Input: 4.6 kW
- Horsepower: 3 HP
- Oil Type:
- R134a/R407C/R404A/R507A/R407A/R407F → BSE32 (Standard)
- R134a (condensing temp >70°C) → BSE55 (Option)
- R22 (R12/R502) → B5.2 (Option)
- R1234yf → BSE32 (Standard) / BSE55 (Option if >70°C)
- R1234ze → BSE55 (Standard) / BSE85K (Option if evaporating temp >15°C or condensing temp >70°C)
- R454C/R455A → BSE32 (Standard)
- Application: Medium- and low-temperature cold rooms, refrigeration cabinets, and air-cooled condensing units
🔵 Why Choose This Compressor:
- Proven Bitzer reliability and long service life
- Compact design ideal for space-constrained installations
- Low noise and minimal vibration levels
- Easy servicing with accessible components
- Compatible with eco-friendly refrigerants
- Ideal for supermarkets, restaurants, warehouses, and industrial refrigeration systems
📦 Need a Condensing Unit or Other Bitzer Models?
We offer a full range of Bitzer compressors, condensing units, and spare parts with competitive pricing and international shipping options.
📧 Email us | 📞 Call or WhatsApp us
Please contact us if you have any questions — we’re here to help!
🚚🌍 Shipping:
We ship worldwide!
- Standard models: 380V / 50Hz (ready for immediate dispatch).
- For other voltages (such as 60Hz or special requests), please allow 3–4 extra weeks for production.
📧 Contact us if you would like more information!
📑 For More Technical Data:
If you want to view even more detailed
please download the full datasheet available above for more info.
