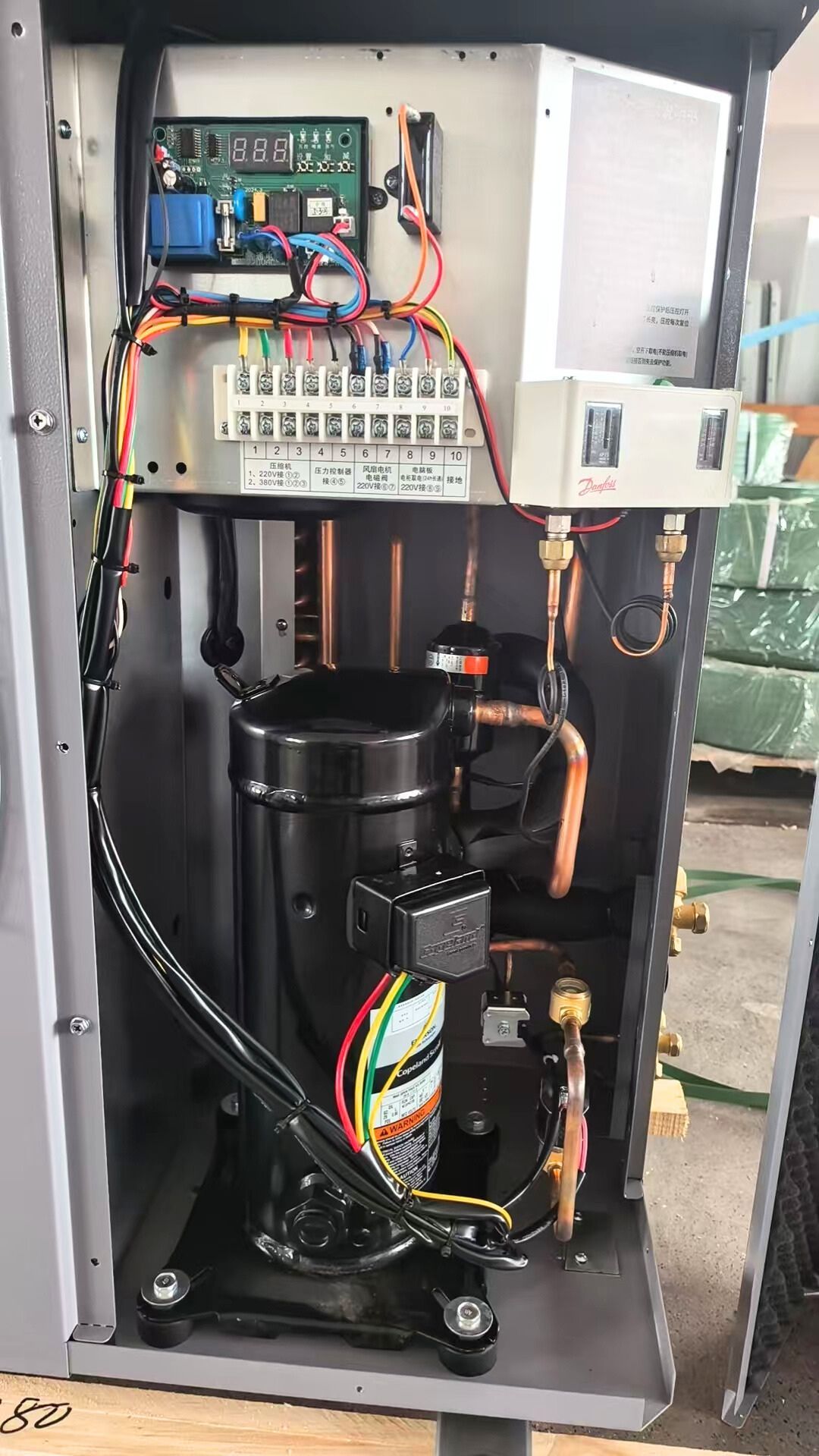

2HP Air-Cooled Condensing Unit

🔧 Key Specifications:

• Model: JLAZ-2HP
• Refrigerant: R404A
• Power Supply: 380V / 50Hz
• Evaporating Temp. Range: +10°C ~ -20°C
• Cooling Capacity:
• 0°C: 4660 W
• -10°C: 3300 W
• -15°C: 2700 W
• Lubrication Oil: POE (Polyolester oil)

🌬 Fan Specifications:

• Fan Quantity: 1
• Air Volume: 3800 m³/h
• Fan Power: 80 W

📏 Unit Dimensions:

• Unit Size:
• Length: 960 mm
• Width: 370 mm
• Height: 810 mm
• Mounting Base Size:
• Length: 725 mm
• Width: 385 mm

🔩 Piping Connections:

• Liquid Pipe Connection: Φ10 mm
• Suction Pipe Connection: Φ16 mm

✅ Applications:

Perfect for small cold storage rooms, food cabinets, supermarkets, freezer showcases, and medium-duty commercial refrigeration projects.

📦 Ready for installation – compact design with all essential components included for easy integration.
