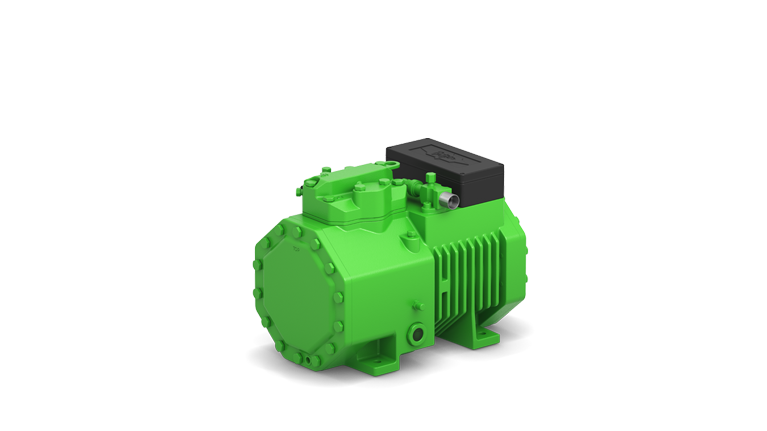

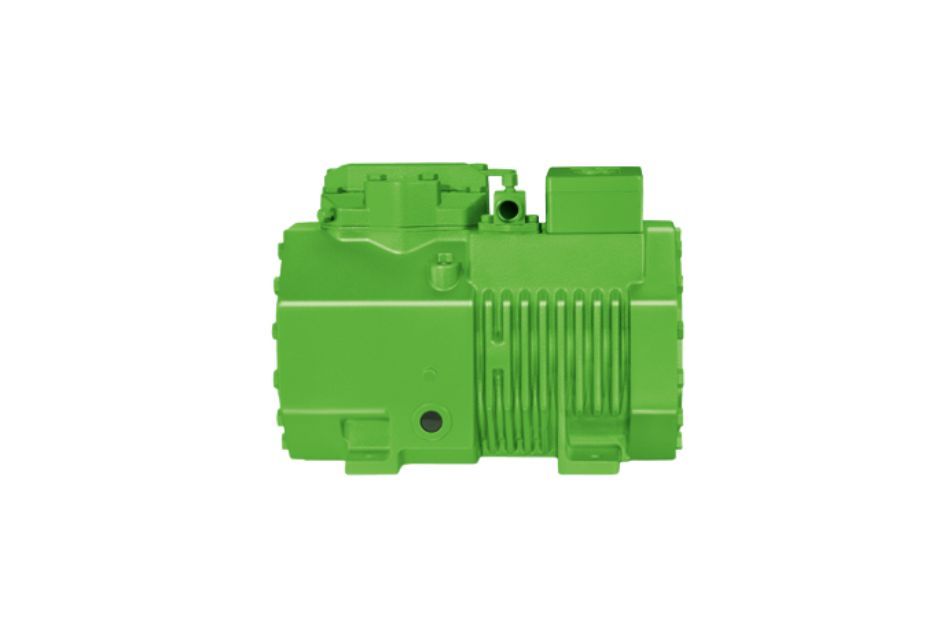

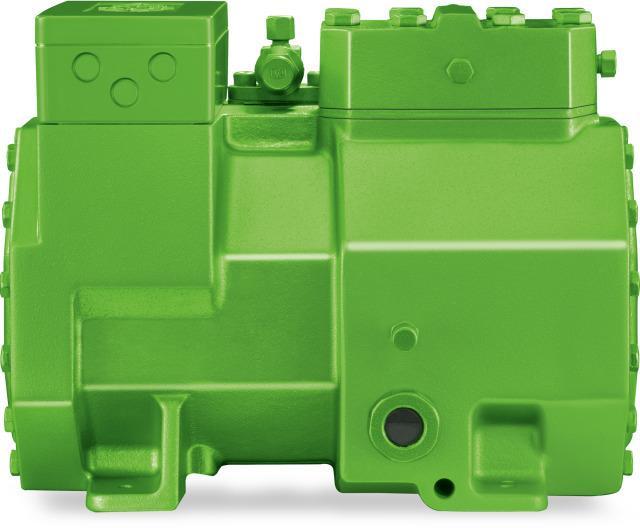

Bitzer 2KES-05Y Semi-Hermetic Reciprocating Compressor

🔧 Technical Data Summary

• Displacement (1450rpm, 50Hz): 4.06 m³/h
• Displacement (1750rpm, 60Hz): 4.90 m³/h
• Number of Cylinders × Bore × Stroke: 2 × 30 mm × 33 mm
• Weight: 46 kg
• Maximum Pressure (Low Pressure/High Pressure): 19 bar / 32 bar
• Connection - Suction Line: 16 mm – 5/8”
• Connection - Discharge Line: 12 mm – 1/2”
• Max. Operating Current: 2.8 A
• Starting Current (Rotor Locked): 12.0 A
• Max. Power Input: 1.5 kW
• Horsepower: 0.5 HP

• Application: Medium and low-temp cold rooms, refrigeration cabinets, and air-cooled condensing units

✅ Why Choose This Compressor:

• Proven Bitzer reliability and durability
• Compact design ideal for limited-space installations
• Low noise and vibration
• Easy to service with accessible components
• Compatible with eco-friendly refrigerants
• Ideal for supermarkets, restaurants, and commercial refrigeration setups

💡 Need a condensing unit or other Bitzer models?

We offer a full range of compressors and parts with competitive pricing and international shipping options.

 Please if you have any questions let us know by whatsapp or let us know how e can help
