Difference Between Chiller and Freezer Cold Rooms

A Practical Guide for Businesses

When planning a cold room project, one of the first and most important decisions is whether you need a chiller cold room or a freezer cold room. Although they may look similar, they are designed for very different temperature ranges, equipment, and costs.

This guide explains the key differences between chiller and freezer cold rooms to help you choose the right solution for your business.

1. What Is a Chiller Cold Room?

A chiller cold room is designed to keep products cool but not frozen.

Typical Temperature Range

• 0°C to +5°C

Common Applications

• Fresh fruits and vegetables

• Dairy products

• Beverages

• Meat and fish (short-term storage)

• Restaurants and supermarkets

Key Features

• Lower cooling demand

• Smaller compressor size

• Lower electricity consumption

• Faster installation

• Lower initial cost

Chiller rooms are ideal when products need to stay fresh without freezing.

2. What Is a Freezer Cold Room?

A freezer cold room is designed to freeze and store products at sub-zero temperatures.

Typical Temperature Range

• –18°C to –25°C (or lower)

Common Applications

• Frozen meat and poultry

• Seafood

• Ice cream

• Frozen vegetables and processed foods

• Long-term storage

Key Features

• Higher cooling demand

• Larger compressor capacity

• Higher electricity usage

• Stronger insulation required

• Higher installation cost

Freezer rooms are essential when long-term preservation is required.

3. Key Differences at a Glance

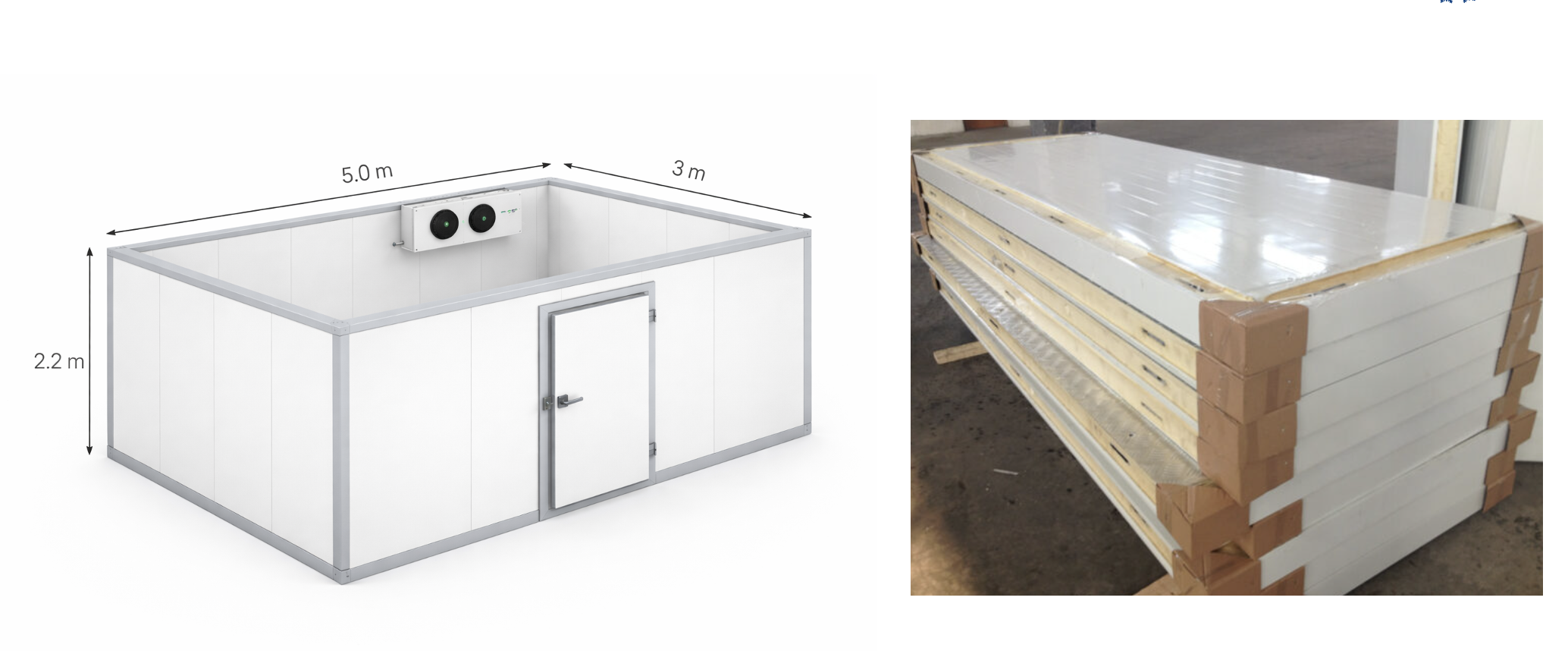

4. Panel Thickness Difference

Insulation plays a major role in cold room performance.

• Chiller rooms usually use 75 mm or 100 mm sandwich panels

• Freezer rooms require 100 mm to 150 mm panels to prevent heat gain and ice formation

Using chiller panels in a freezer room will cause:

• ice buildup

• unstable temperature

• high power consumption

5. Equipment Difference (Compressor & Evaporator)

Even if the room size is the same, equipment selection is different.

Chiller Equipment

• Smaller compressor (e.g. 1–3 HP for small rooms)

• Standard evaporator

• Lower operating pressure

Freezer Equipment

• Larger compressor (higher HP)

• Low-temperature evaporator

• Defrost system required

• Higher system cost

👉 A freezer cold room of the same size can cost 30–50% more than a chiller room.

6. Energy Consumption & Running Cost

This is often overlooked.

• Chiller rooms consume less electricity

• Freezer rooms run longer and work harder

• Hot climates increase freezer operating cost even more

If you do not need freezing, choosing a freezer room will unnecessarily increase your power bill.

7. Can One Room Be Used as Both?

Yes — but with conditions.

If you want to use the room as both a chiller and a freezer, the design must follow freezer standards, including:

• thicker panels

• larger compressor

• higher initial cost

👉 You cannot convert a chiller room into a freezer without upgrading equipment and insulation.

8. Which One Should You Choose?

Choose a chiller cold room if:

• You store fresh products

• You need lower cost

• You want energy efficiency

Choose a freezer cold room if:

• You store frozen products

• You need long-term storage

• You accept higher cost and power use

Final Advice

The difference between chiller and freezer cold rooms is not just temperature — it affects:

• design

• equipment

• power consumption

• long-term operating cost

Choosing the wrong type can lead to high energy bills, poor performance, and equipment failure.

👉 Always confirm your application with a refrigeration specialist before finalizing your cold room.
